Mini Desktop Firewall Appliance,4*I226 2.5G LAN, Fanless Mini PC Celeron J6412,Micro Router Appliance for Home Officer,DDR4 M.2 NVMe(PCIe3.0x2),HD/DP/Type-C Display,2 x SATA3.0,NO RAM NO SSD
Product details
| Management number | 239779797 | Release Date | 2026/07/14 | List Price | US$70.40 | Model Number | 239779797 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

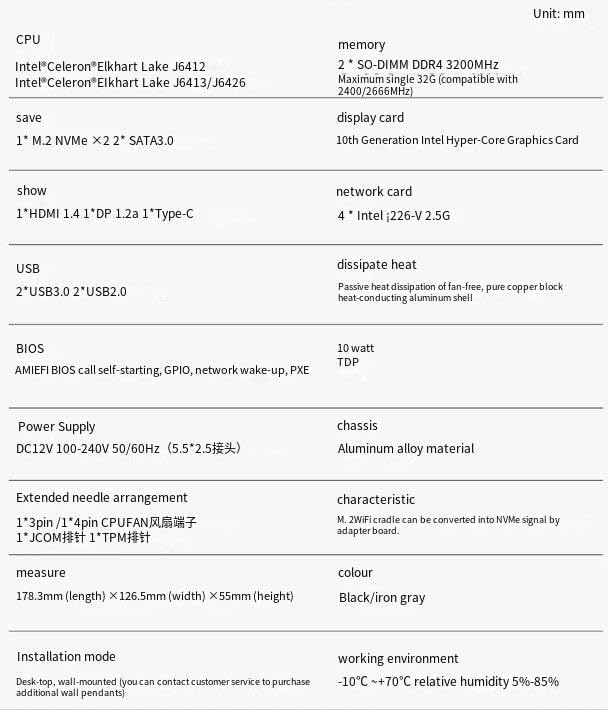

Product features Quad-core low-power platform base on Intel Celeron Elkhart Lake 4 Intel i226-V2.5G network cards 2 xSO-DIMM DDR43200MHz(Compatible with2400/2666)Max 64G 1 M.2 NVMe(PCle 3.0×2) interface is compatible with the 2280-size SSD. 1 M.2 WiFi A.E Key supports WiFi6/ bluetooth module. 1 M. 2 WiFi cradle can expand the original M.2 signal to X1 after the M.2 NVMe adapter board is used. 2 SATA3.0 interfaces, 4pin power supply compatible with 2.5/3.5 inch hard disk. 1 HDMI1.4+DP1.2a+Type-C display/data, supporting 3 display outputs. 1 TF card submount, which supports data storage and system boot function. Two small 3/4Pin 12V fan seats on board are reserved with a set of TPM pins. UDE brand 2.5G network port connector connection is more stable. Double-row vent bottom cover with dust screen, supporting 8010 fan. Size：178.3mm*126.5mm*55mm Working environment: -0 ℃~+70 ℃ Relative humidity 5% -85%
- ◆Powerful J6412 Processo：Celeron J6412 Processor, 4 Cores 4 Threads, 4M Cache, Max Turbo Frequency 2.6 GHz, TDP 10W.Compatible with OPNsense, Windows,Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE.
- ◆ Quad 2.5GbE LAN: Mini Router PC with 4 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than ordinary Gigabit Ethernet. Soft router can monitor network data, improve network security, powerful and wide operation. 1 M.2 WiFi A.E Key supports WiFi6/ bluetooth module,M. 2 WiFi cradle can expand the original M.2 signal to X1 after the M.2 NVMe adapter board is used.
- ◆DDR4 Memory & Large Storage Capacity: Firewall box computer with 2xDDR4 SODIMM non-ecc ram slots, DDR4 3200MHz. Compatible with 2400/2666 frequencies, up to 32GB per line.1 M.2 NVMe(PCle 3.0×2) interface is compatible with the 2280-size SSD.2 SATA3.0 interfaces.
- ◆UHD Graphics & Triple Display: J6412 processor integrated UHD Graphics, HDMI, DP and Type-C display interfaces support 4K.
- ◆Rich interfaces: 4x2.5G i226V-Lan, 1x USB 3.0, 4x USB 2.0, HDMI, DP,Type-C,1 TF card slot supports data storage and system startup.
| ASIN | B0H2LSXPX8 |
|---|---|
| Brand | UDPTCP |
| RAM Type | SODIMM |
| Model Name | CW-ZY-J6412-4L |
| Manufacturer | UDPTCP |
| Memory Speed | 3200 MHz |
| Model Number | CW-ZY-J6412-4L |
| BuiltIn Media | Water Cooling |
| Cooling Method | Fan |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 2 GHz |
| Total Usb Ports | 4 |
| Video Processor | Intel |
| CPU Model Number | J6412 |
| Operating System | Windows |
| Processor Series | Celeron |
| Processor Socket | FCBGA1493 |
| Graphics Ram Type | L2 cache |
| Hardware Interface | DisplayPort, Ethernet, HDMI, SATA 3.0 Gb/s, USB, USB Type C |
| Memory Clock Speed | 3200 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| CPU Model Speed Maximum | 2.6 GHz |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 32 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 4096x2160 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 3 |
| Personal Computer Design Type | Mini PC |
